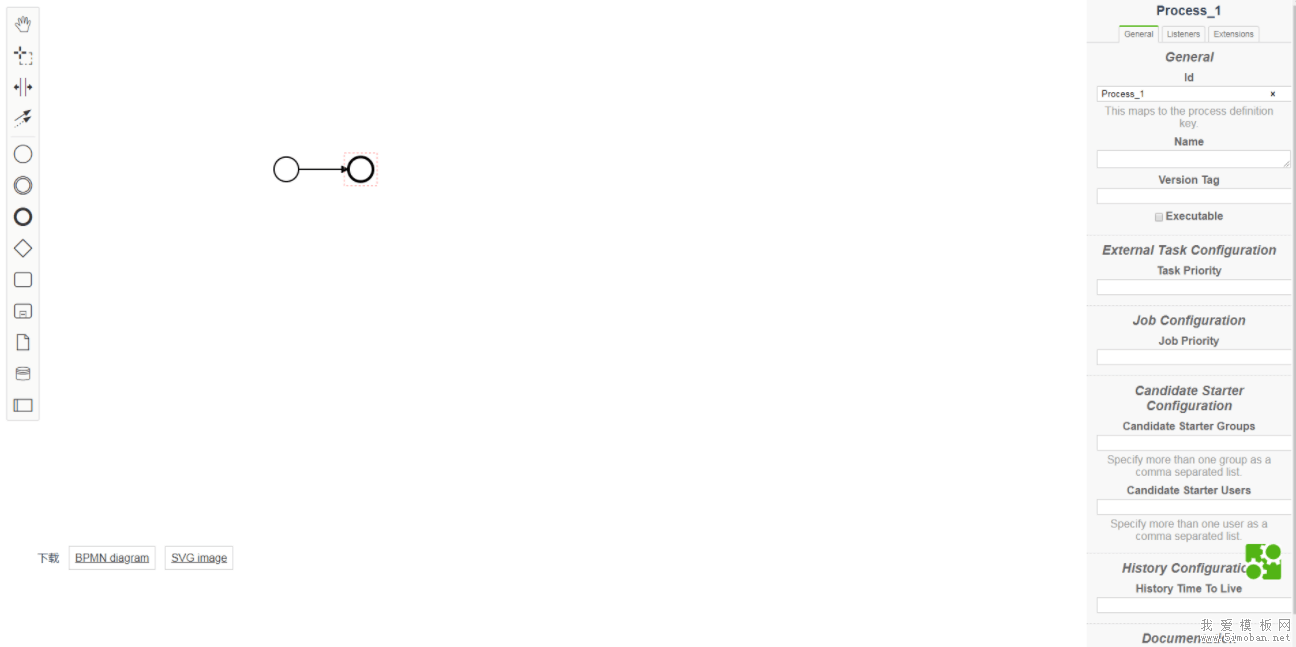

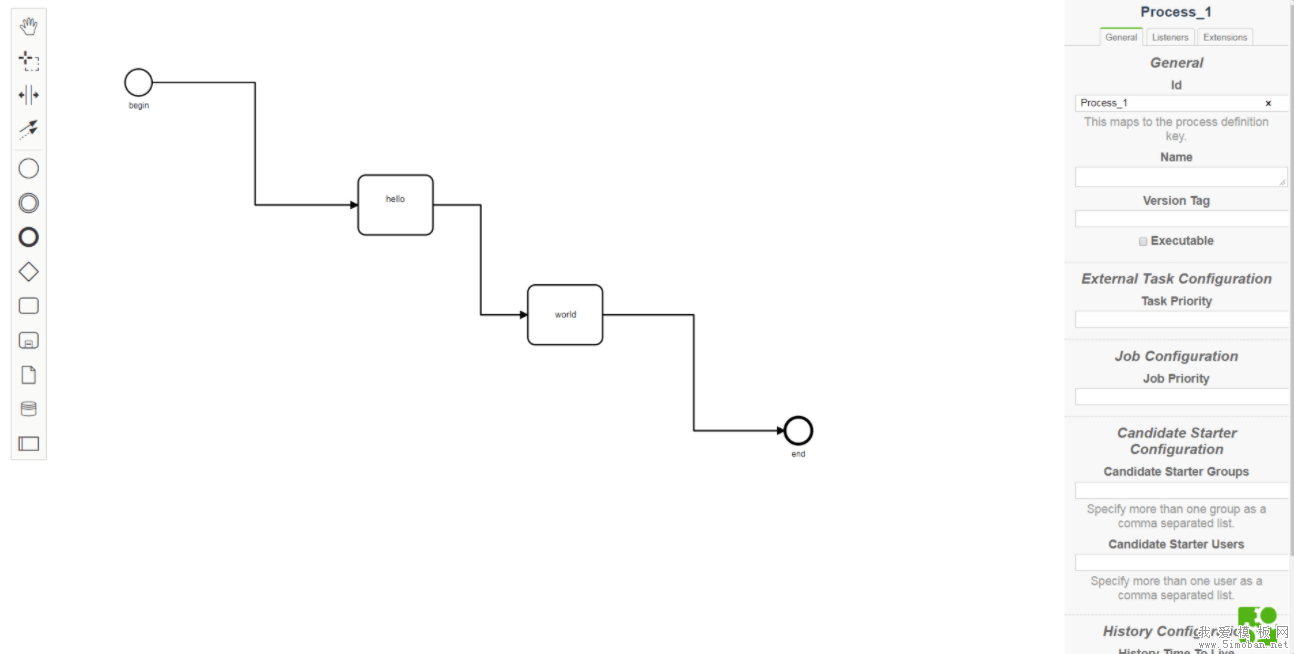

这里是写死的某几个节点和线,真正应该通过与后台交互获取到已经走过的流程然后上色。
<div class="containers" ref="content"> <div class="canvas" ref="canvas"></div> <el-button class="back" type="primary" @click="back">返回列表</el-button> <el-dialog :title="nodeName" :visible.sync="dialogVisible" :show-close="true" width="30%" size="large"> <flow-view :nodeName="nodeName" :nodeCode="nodeCode" :nodeId="dialog_id" :confBaseId="dialog_confBaseId" :modelId="modelId"></flow-view> </el-dialog> <!--<div id="js-properties-panel" class="panel"></div>--> </div> </template> <script> import flowView from '../../components/flow/FlowsView.vue' import {getBpmnXml, saveBpmnData, getNodeData} from '../../api/modeler' // import { readFileSync } from "fs"; export default { components: { flowView }, data(){ return { id: "", bpmnModeler: null, container: null, canvas: null, xmlStr: null, // 点击节点获取的数据 nodeCode: "", nodeName: "", // 弹窗相关的数据 dialogVisible: false, dialog_id: "", dialog_confBaseId: '' } }, methods:{ createNewDiagram() { const that = this; let params = { id: this.id }; getBpmnXml(params).then(res => { const bpmnXmlStr = res.obj; // console.log(bpmnXmlStr) this.bpmnModeler.importXML(bpmnXmlStr, function (err) { if (err) { console.error(err); } that.success() const canvas = that.bpmnModeler.get('canvas'); canvas.zoom('fit-viewport'); // 就是在这里写死了 const nodeCodes = ['StartEvent_1','Task_0qg0mca','Task_0307aue']; const colorClass = 'nodeSuccess'; that.setNodeColor(nodeCodes, colorClass, canvas); const nodeCodes2 = ['SequenceFlow_1u5gq9e','SequenceFlow_1n5pril']; const colorClass2 = 'lineSuccess'; that.setNodeColor(nodeCodes2, colorClass2, canvas); }); }) }, // 返回表格页面 back() { const data = false; this.$emit("closeEdit", data); }, success() { const bpmnjs = this.bpmnModeler; const eventBus = bpmnjs.get('eventBus'); const elementFactory = bpmnjs.get('elementFactory'); // viewer没有这两个 所以不传了 // const commandStack = bpmnjs.get('commandStack'); // const bpmnRules = bpmnjs.get('bpmnRules'); const Modeling = require('bpmn-js/lib/features/modeling/Modeling') const commandStack = require('diagram-js/lib/command/index'); const bpmnRules = require('bpmn-js/lib/features/rules/index'); const modeling = new Modeling(eventBus,elementFactory,commandStack,bpmnRules); // this.setLineColor('Task_0307aue','RED', this, modeling); this.addBpmnListener(this, modeling); }, // 给节点添加监听时间(点击) addBpmnListener(_self,modeling) { const bpmnjs = this.bpmnModeler; const eventBus = bpmnjs.get('eventBus'); const events = [ 'element.click', 'element.dblclick' ]; events.forEach(function(event) { eventBus.on(event, function(e) { //bpmn:Lane bpmn:SequenceFlow bpmn:Task bpmn:SequenceFlow bpmn:ExclusiveGateway //bpmn:Process //console.log(event + ' ' + JSON.stringify(e.element)); if(e.element.type === 'bpmn:Process' || e.element.type === 'bpmn:Lane') return; //debugger; const elementRegistry = bpmnjs.get('elementRegistry'); const shape = elementRegistry.get(e.element.id); // console.log(shape) // modeling.setColor(shape,{ stroke:'RED' }); // _self.nodeCode=e.element.id; _self.nodeCode = shape.businessObject.id; // console.log(_self.nodeCode) _self.nodeName = shape.businessObject.name; _self.getDialogId() }); }); }, // 给已经走过的流程添加颜色 setNodeColor(nodeCodes, colorClass, canvas){ for(let i = 0; i < nodeCodes.length; i++) { canvas.addMarker(nodeCodes[i], colorClass); } }, // 获取给弹窗的id getDialogId(){ const that = this; const params = { nodeCode: this.nodeCode, modelId: this.modelId }; getNodeData(params).then(res => { that.dialog_id = res.obj.id; that.dialog_confBaseId = res.obj.confBaseId; that.dialogVisible = true; }) } }, mounted(){ this.id = this.bpmnId; var BpmnModeler = require('bpmn-js'); this.container = this.$refs.content; var canvas = this.$refs.canvas; this.bpmnModeler = new BpmnModeler({ container: canvas, // // // 添加右边属性控制板 // propertiesPanel: { // parent: '#js-properties-panel' // }, }); this.createNewDiagram(this.bpmnModeler); }, props: [ "bpmnId", "modelId" ] }
@import "./css/diagram-js.css"; @import "./css/app.css"; @import "./vendor/bpmn-font/css/bpmn-embedded.css"; .containers{ position: absolute; display: inline-block; background-color: #ffffff; width: 100%; height: 90%; } .canvas{ width: 100%; height: 100%; } .panel{ position: absolute; right: 0; top: 0; width: 300px; } .back { display: inline-block; position: absolute; bottom: 20px; left: 5px; } .nodeSuccess:not(.djs-connection) .djs-visual > :nth-child(1) { stroke: green !important; stroke-width: 3px; /* elements as success */ } .nodeError:not(.djs-connection) .djs-visual > :nth-child(1) { stroke: red !important; stroke-width: 3px; /* elements as error */ } .lineSuccess:not(.djs-shape) .djs-visual :last-child{ stroke: green !important; } .lineError:not(.djs-shape) .djs-visual :last-child{ stroke: red !important; }
