将html+css页面生成canvas:html2canvas.js

html2canvas可以通过纯JS对浏览器端进行"截屏",但"截图"的精确度还有待提高,部分css不可识别,如css3的filter等,所以在canvas中不能完全呈现原画面样式。

支持的浏览器

Firefox 3.5+
Google Chrome
Opera 12+
IE11+
Safari 6+

基本语法
1//两个参数:所需要截图的元素id,截图后要执行的函数, canvas为截图后返回的最后一个canvas
2html2canvas(document.getElementById('id')).then(function(canvas) {document.body.appendChild(canvas);});
可用参数

参数名称 类型 默认值 描述
allowTaint boolean false Whether to allow cross-origin images to taint the canvas---允许跨域
background string #fff Canvas background color, if none is specified in DOM. Set undefined for transparent---canvas的背景颜色,如果没有设定默认透明
height number null Define the heigt of the canvas in pixels. If null, renders with full height of the window.---canvas高度设定
letterRendering boolean false Whether to render each letter seperately. Necessary if letter-spacing is used.---在设置了字间距的时候有用
logging boolean false Whether to log events in the console.---在console.log()中输出信息
proxy string undefined Url to the proxy which is to be used for loading cross-origin images. If left empty, cross-origin images won't be loaded.---代理地址
taintTest boolean true Whether to test each image if it taints the canvas before drawing them---是否在渲染前测试图片
timeout number 0 Timeout for loading images, in milliseconds. Setting it to 0 will result in no timeout.---图片加载延迟,默认延迟为0,单位毫秒
width number null Define the width of the canvas in pixels. If null, renders with full width of the window.---canvas宽度
useCORS boolean false Whether to attempt to load cross-origin images as CORS served, before reverting back to proxy--这个我也不知道是干嘛的

例子
01<!DOCTYPE html>
02<html>
03<head>
04    <meta charset="utf-8">
05    <meta http-equiv="X-UA-Compatible" content="IE=edge">
06    <title>html2canvas example</title>
07    <script type="text/javascript" src="html2canvas.js"></script>
08</head>
09<script type="text/javascript">
10function takeScreenshot() {
11  console.log('test');
12    html2canvas(document.getElementById('view'), {
13        onrendered: function(canvas) {
14            document.body.appendChild(canvas);
15        },
16      // width: 300,
17    // height: 300
18    });
19}
20</script>
21<body>
22    <div id="view" style="background:url(test.jpg) 50%; width: 700px; height: 500px;">
23        <input type="button" value="截图" onclick="takeScreenshot()">
24    </div>
25</body>
26</html>

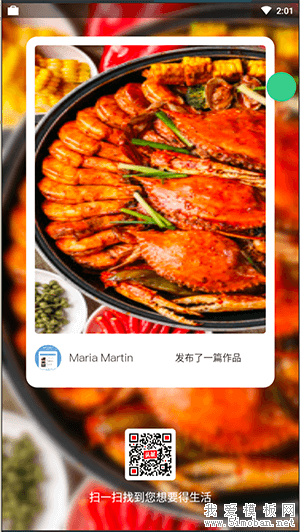

下面是我爱模板网利用 html2canvas 生成的图片:



遇到的问题
    1、由于 html2canvas.js 不支持css3的高斯模糊滤镜,所以,我是先用js将图片生成高斯模糊的canvas定位到了底层,再使用html2canvas.js生成整个页面,参见:canvas实现高斯模糊
    2、html2canvas.js使用了Promise,IE11-浏览器不支持,要做下兼容处理:
1if (!window.Promise) {document.write('<script src="//www.5imoban.net/download/js/promise/es6-promise.min.js"><\/script><script>ES6Promise.polyfill()<\/script>');')
